03 · Front-Lit (Trimless)
Trimless Aluminum & 3D Printed Channel Letters
Our best-value volume line: rust-free aluminum returns with a clean, trim-cap-free face.
Aluminum for outdoor storefronts · epoxy resin letters for indoor
- Up to 40% lighter than stainless steel
- Our best-value, high-volume line for chain stores and restaurants.
- Aluminum returns are substantially lighter than traditional iron or stainless steel returns, reducing chargeable weight for air and sea freight.
- Aluminum does not rust like steel, removing a common failure point in rainy tropical climates.
| Environment | Outdoor storefronts (aluminum) / Indoor (epoxy resin) |
|---|---|
| Materials | Aluminum returns, acrylic face; 3D printed or resin options |
| Illumination | Front-lit (trimless), textured or beveled faces |
| Power | DC 12V low-voltage sign body |
| Production | 5–8 Working Days* |
* Estimated range. The schedule is confirmed in your written quotation.
Styles in this series

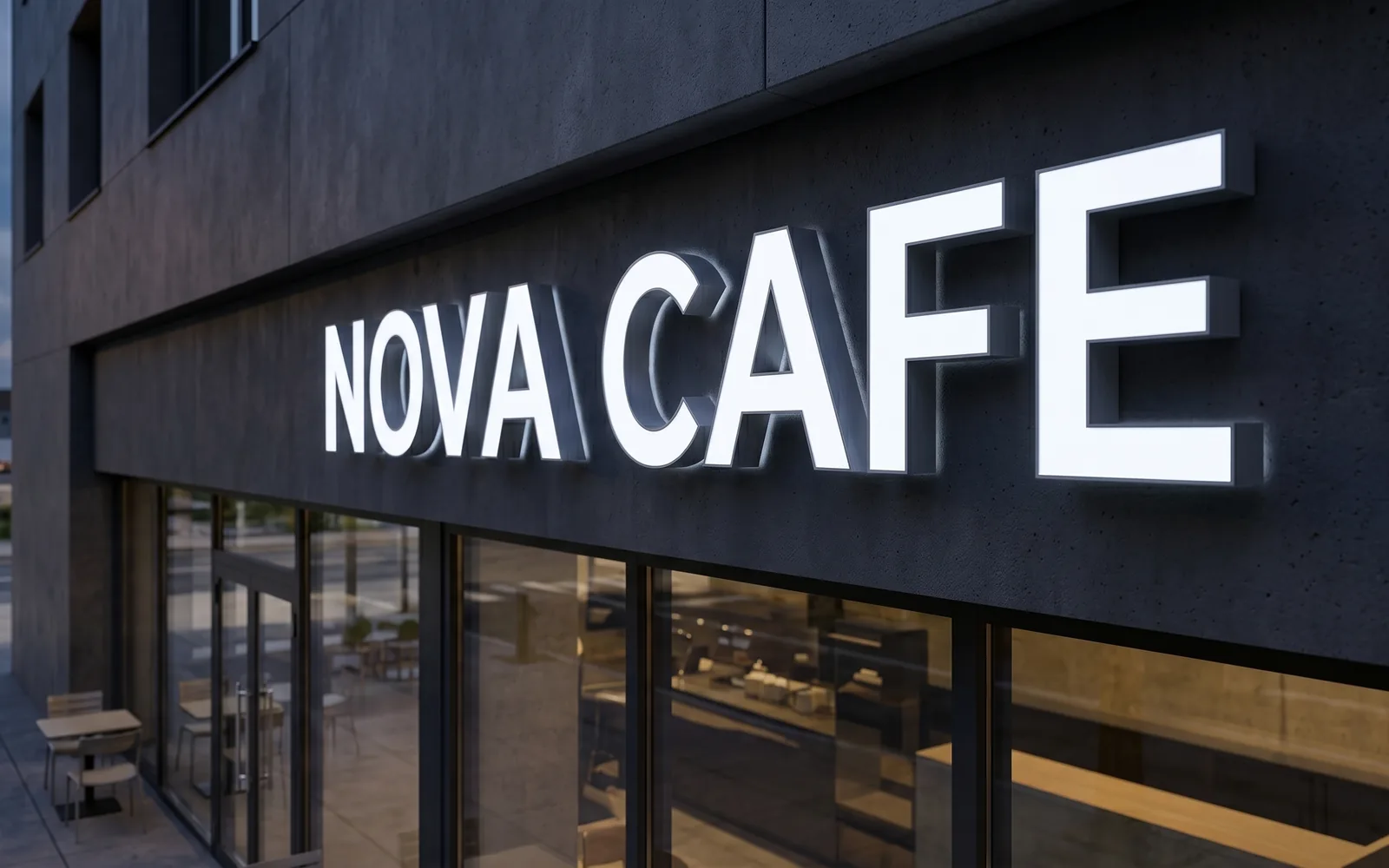

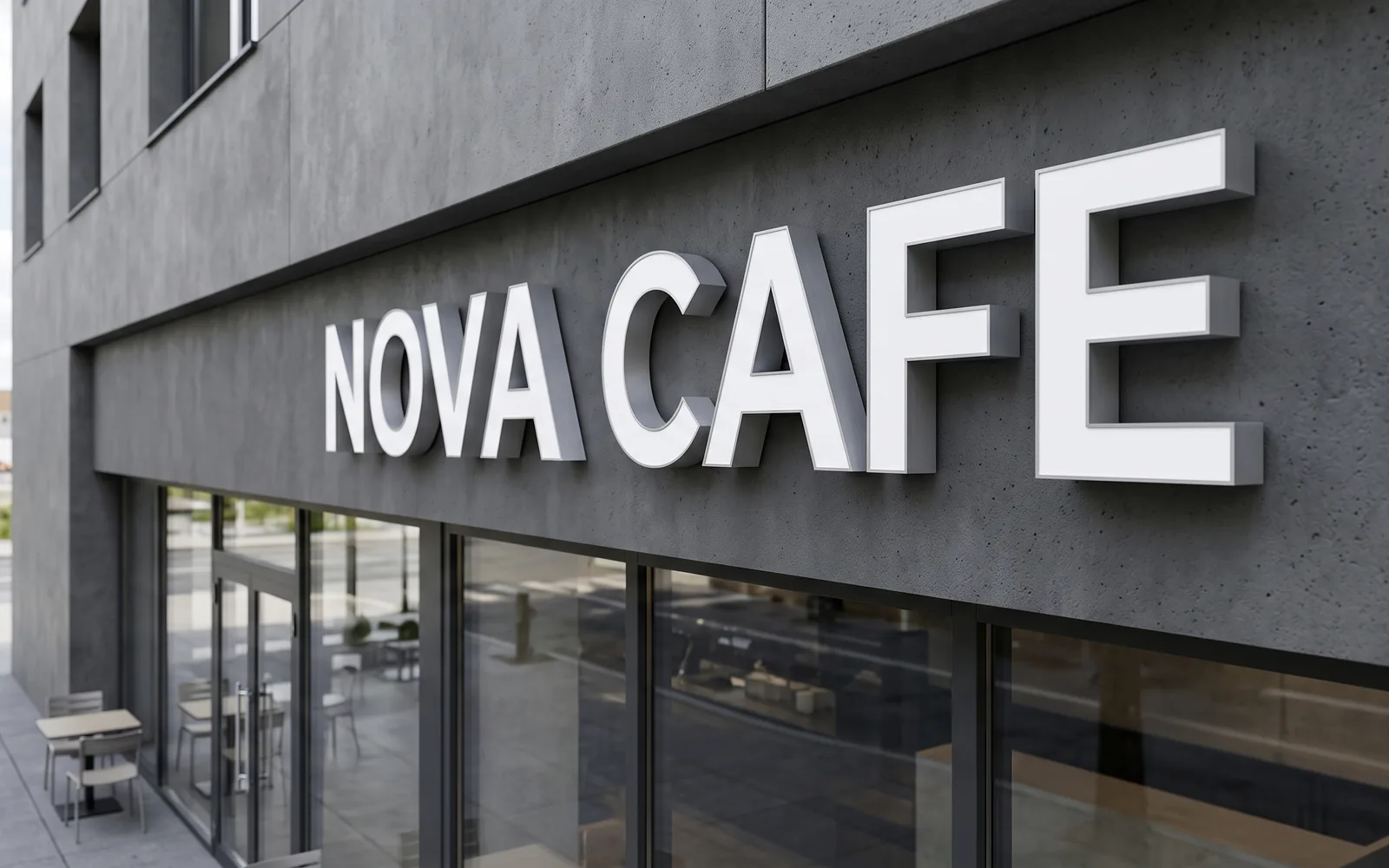

- Frameless (Trimless) Aluminum Channel LettersCNC auto-notched and bent aluminum returns with no trim cap for a modern look. Aluminum does not rust like steel.
- 3D Printed Texture & Beveled SignsCost-efficient 3D printed returns with optional diamond-texture or beveled illuminated faces.
- Indoor Epoxy Resin LettersHigh-brightness resin-filled letters for indoor fascias and feature walls.
02 · Structural Anatomy
What is inside every letter
Four layers, each specified in your English shop drawing before production.
Layer 1 · Face
Flush acrylic face, no trim cap
The acrylic face sits flush within the return; 3D printed letters can use diamond-texture or beveled faces.
Layer 2 · Return
CNC-notched aluminum returns
Aluminum coil is auto-notched and bent by CNC, then painted to RAL colors. The 3D printed series uses printed returns.
Layer 3 · Light source
IP65/IP67-rated LED modules
Low-voltage DC 12V modules spaced to the letter depth and face. The rating applies to the LED modules, not the complete sign.
Layer 4 · Backplate & mounting
Aluminum back panel and studs
An aluminum back panel closes the letter; threaded studs fix it flush, with weep holes on outdoor letters.
03 · Customization Options
Finishes, light color and sizing
On-screen colors are approximate. Physical swatches are included in the Sign Maker Sample Kit.
Return & face finishes
- RAL color-matched paint
- Black / white / silver standard returns
- Diamond-texture 3D printed face
- Beveled 3D printed face
LED color temperature
- 3000K Warm White
- 4000K Neutral White
- 6500K Cool White
- RGB (with controller)
Recommended letter height & stroke width
Confirmed in your shop drawing for each layout.
Return depth and minimum stroke depend on the face style; limits are confirmed in the shop drawing.
04 · Tropical & Weather Adaptation
Built for Southeast Asian heat, rain and salt air
Tell us the installation exposure (coastal, direct sun, typhoon rain) so materials and drainage are specified for your site.
Rust-free returns
Aluminum returns do not rust like iron or steel; painted surfaces are specified for coastal exposure.
Typhoon rain
Outdoor letters are fitted with concealed weep holes at the base for drainage and ventilation.
Tropical UV
Virgin acrylic faces are used to reduce yellowing under strong sun.
05 · Plug & Play Installation Kit
Everything your installers need on site
Included in every shipment
- 1:1 Mounting Paper TemplateFull-size kraft paper template with pre-marked drilling points for every letter.
- Mounting hardwareThreaded studs, standoff pins and spacers matched to the approved mounting method.
- English parallel wiring diagramLetter-by-letter wiring layout and driver connection in English.
Mounting methods
06 · Export-Grade Packaging
Four-step export packing from Xiamen / Quanzhou, China
Step 1
Pre-shipment lighting test
Every illuminated item is powered up and recorded on video for your confirmation before packing.
Step 2
Individual bubble wrap
Each letter or frame component is wrapped separately to protect faces and finishes.
Step 3
High-density EPE foam slots
Foam is cut to shape so pieces cannot shift or rub during transit.
Step 4
Fumigation-free plywood crate
Export plywood crates that do not require fumigation certificates.
07 · How to Order
From artwork to dispatch in four steps
- 1
Send Vector Artwork (AI/CDR/PDF)
Share your logo or layout with size, quantity and installation city. JPG/PNG is fine to start.
- 2
Free English Shop Drawing & Quote in 24h
Receive a dimensioned shop drawing and quotation for review and written approval.
- 3
CNC Fabrication & Video QC
Production starts after approval; lighting tests and finishes are shared on video.
- 4
Air/Sea Dispatch to Southeast Asia
Packed and shipped from Xiamen / Quanzhou, China by air express, air freight or sea.
Production starts only after you approve the shop drawing and order terms in writing. Start with step 1.
FAQ
Questions about Trimless Aluminum & 3D Printed Letters
Still deciding? Send your artwork and ask anything in the notes.
01Do aluminum channel letters rust?
Aluminum does not rust like iron or steel, which removes a common failure point in rainy tropical climates. Painted finishes are specified for coastal exposure.
02How much lighter are aluminum letters?
Aluminum returns are up to 40% lighter than stainless steel, which reduces chargeable weight for air and sea freight.
03What do you need from me to prepare a quote?
Send your logo or layout (AI, CDR or PDF vector files are best; JPG or PNG is fine to start), the approximate size, quantity and installation city. We aim to return an English shop drawing and quotation within 24h of receiving complete artwork.
04Are the signs and power supplies certified?
Sign bodies run on low-voltage DC 12V. CE/RoHS/UL certified AC-DC LED drivers (e.g., MeanWell) are available upon request and are packed separately. Certification applies to those drivers, not to the complete custom sign; your local installer confirms site-specific electrical requirements.
05How long does production take?
Production is estimated at 5–8 Working Days after you approve the shop drawing and order terms. The confirmed schedule and shipping method are stated in your written quotation.
06Who installs the letters?
Installation is handled by your local team. Every order ships with a 1:1 mounting paper template, mounting hardware and an English wiring diagram so installers can position and wire letters quickly.
08 · Get a Quote
Upload your artwork for a free shop drawing & quote
Send your logo or layout with the size and destination. We reply with an English shop drawing and quotation, targeted within 24h of receiving complete artwork.
- Vector files (AI / CDR / PDF) preferred; JPG or PNG is fine to start
- No obligation; production starts only after written approval
- Prefer email? [email protected]
