01 · Halo-Lit (Backlit)
3D Fabricated Stainless Steel & Halo-Lit Channel Letters
Laser-welded stainless steel letters with halo, rim-lit and electroplated luxury finishes.
304 SS for outdoor & coastal · 201 SS for indoor
- All-metal construction stands up to long-haul export handling far better than painted or acrylic-only letters.
- Hand-welded stainless letters are costly to produce locally in Southeast Asia, leaving sign shops a strong resale margin.
| Environment | Indoor (201 SS) / Outdoor & coastal (304 SS) |
|---|---|
| Materials | 201 or 304 stainless steel; frosted or clear acrylic back panel |
| Illumination | Halo-lit (backlit), rim-lit or non-illuminated |
| Power | DC 12V low-voltage sign body |
| Production | 5–8 Working Days* |
* Estimated range. The schedule is confirmed in your written quotation.
Styles in this series

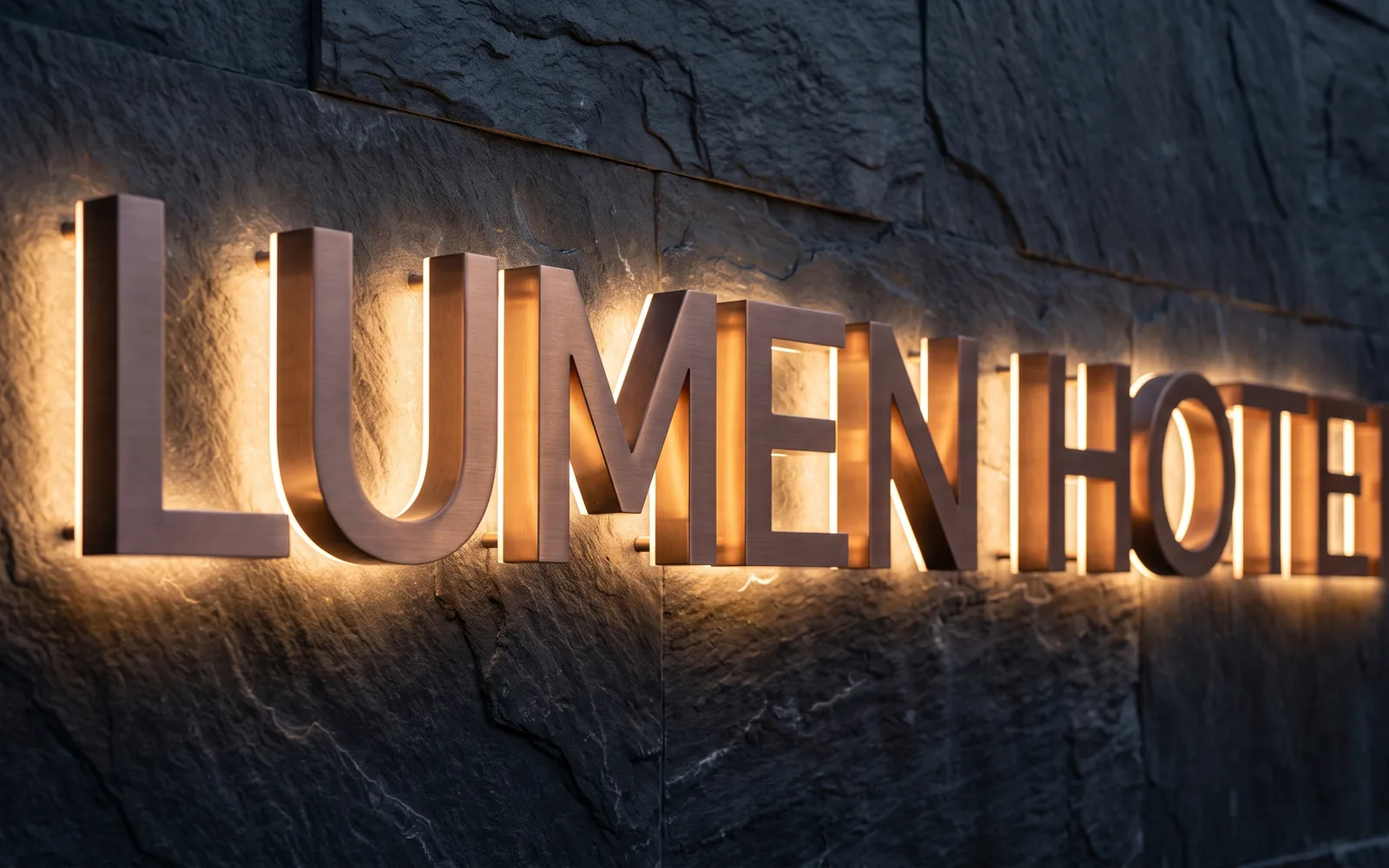

- Halo-Lit (Backlit) Stainless Steel LettersLaser-welded stainless steel shells with a frosted acrylic back panel that throws a soft, premium halo onto the wall.
- Rim-Lit Metal Channel LettersStainless steel rim or wrapped edge with a high-transmission acrylic face. A robust choice for typhoon-exposed outdoor storefronts.
- Electroplated Luxury Metal LettersVacuum-electroplated rose gold, black titanium and brushed bronze finishes for hospitality, jewelry and corporate lobbies.
02 · Structural Anatomy
What is inside every letter
Four layers, each specified in your English shop drawing before production.
Layer 1 · Face
Stainless steel or acrylic face
Solid stainless face for halo-lit letters, or a high-transmission acrylic face inside a stainless rim for rim-lit letters.
Layer 2 · Return
Laser-cut, laser-welded returns
Stainless steel returns cut and welded for clean seams, then brushed, mirror-polished or electroplated.
Layer 3 · Light source
IP65/IP67-rated LED modules
Low-voltage DC 12V modules laid out per letter in the shop drawing. The rating applies to the LED modules, not the complete sign.
Layer 4 · Backplate & mounting
Acrylic back panel and studs
A frosted acrylic back panel diffuses light toward the wall; threaded studs with standoff spacers set the halo distance.
03 · Customization Options
Finishes, light color and sizing
On-screen colors are approximate. Physical swatches are included in the Sign Maker Sample Kit.
Electroplated & painted finishes
- Brushed Silver
- Mirror Black Titanium
- Rose Gold
- Champagne Gold
- RAL color-matched paint
Physical color swatches are included in the Sign Maker Sample Kit.
LED color temperature
- 3000K Warm White
- 4000K Neutral White
- 6500K Cool White
- RGB (with controller)
Recommended letter height & stroke width
Confirmed in your shop drawing for each layout.
Halo-lit letters need enough stroke width to hold LED modules; final limits are confirmed in the shop drawing.
04 · Tropical & Weather Adaptation
Built for Southeast Asian heat, rain and salt air
Tell us the installation exposure (coastal, direct sun, typhoon rain) so materials and drainage are specified for your site.
Salt-air corrosion
201 stainless steel is offered for indoor use; 304 stainless steel is specified for outdoor and coastal installations.
Typhoon rain
Outdoor letters are fitted with concealed weep holes at the base so rainwater and condensation can drain.
Tropical UV
Virgin acrylic panels are used instead of recycled sheet to reduce yellowing under strong sun.
05 · Plug & Play Installation Kit
Everything your installers need on site
Included in every shipment
- 1:1 Mounting Paper TemplateFull-size kraft paper template with pre-marked drilling points for every letter.
- Mounting hardwareThreaded studs, standoff pins and spacers matched to the approved mounting method.
- English parallel wiring diagramLetter-by-letter wiring layout and driver connection in English.
Mounting methods
06 · Export-Grade Packaging
Four-step export packing from Xiamen / Quanzhou, China
Step 1
Pre-shipment lighting test
Every illuminated item is powered up and recorded on video for your confirmation before packing.
Step 2
Individual bubble wrap
Each letter or frame component is wrapped separately to protect faces and finishes.
Step 3
High-density EPE foam slots
Foam is cut to shape so pieces cannot shift or rub during transit.
Step 4
Fumigation-free plywood crate
Export plywood crates that do not require fumigation certificates.
07 · How to Order
From artwork to dispatch in four steps
- 1
Send Vector Artwork (AI/CDR/PDF)
Share your logo or layout with size, quantity and installation city. JPG/PNG is fine to start.
- 2
Free English Shop Drawing & Quote in 24h
Receive a dimensioned shop drawing and quotation for review and written approval.
- 3
CNC Fabrication & Video QC
Production starts after approval; lighting tests and finishes are shared on video.
- 4
Air/Sea Dispatch to Southeast Asia
Packed and shipped from Xiamen / Quanzhou, China by air express, air freight or sea.
Production starts only after you approve the shop drawing and order terms in writing. Start with step 1.
FAQ
Questions about Stainless Steel & Halo-Lit Letters
Still deciding? Send your artwork and ask anything in the notes.
01Should I choose 201 or 304 stainless steel?
Use 201 stainless steel for indoor installations. For outdoor storefronts and coastal cities, specify 304 stainless steel, which offers better resistance to salt-air corrosion.
02How far from the wall are halo-lit letters mounted?
Standoff pins hold the letters off the wall so the light can spread into a halo. The spacing is set in your shop drawing; a light, matte wall shows the halo best.
03What do you need from me to prepare a quote?
Send your logo or layout (AI, CDR or PDF vector files are best; JPG or PNG is fine to start), the approximate size, quantity and installation city. We aim to return an English shop drawing and quotation within 24h of receiving complete artwork.
04Are the signs and power supplies certified?
Sign bodies run on low-voltage DC 12V. CE/RoHS/UL certified AC-DC LED drivers (e.g., MeanWell) are available upon request and are packed separately. Certification applies to those drivers, not to the complete custom sign; your local installer confirms site-specific electrical requirements.
05How long does production take?
Production is estimated at 5–8 Working Days after you approve the shop drawing and order terms. The confirmed schedule and shipping method are stated in your written quotation.
06Who installs the letters?
Installation is handled by your local team. Every order ships with a 1:1 mounting paper template, mounting hardware and an English wiring diagram so installers can position and wire letters quickly.
08 · Get a Quote
Upload your artwork for a free shop drawing & quote
Send your logo or layout with the size and destination. We reply with an English shop drawing and quotation, targeted within 24h of receiving complete artwork.
