04 · SEG Lightbox

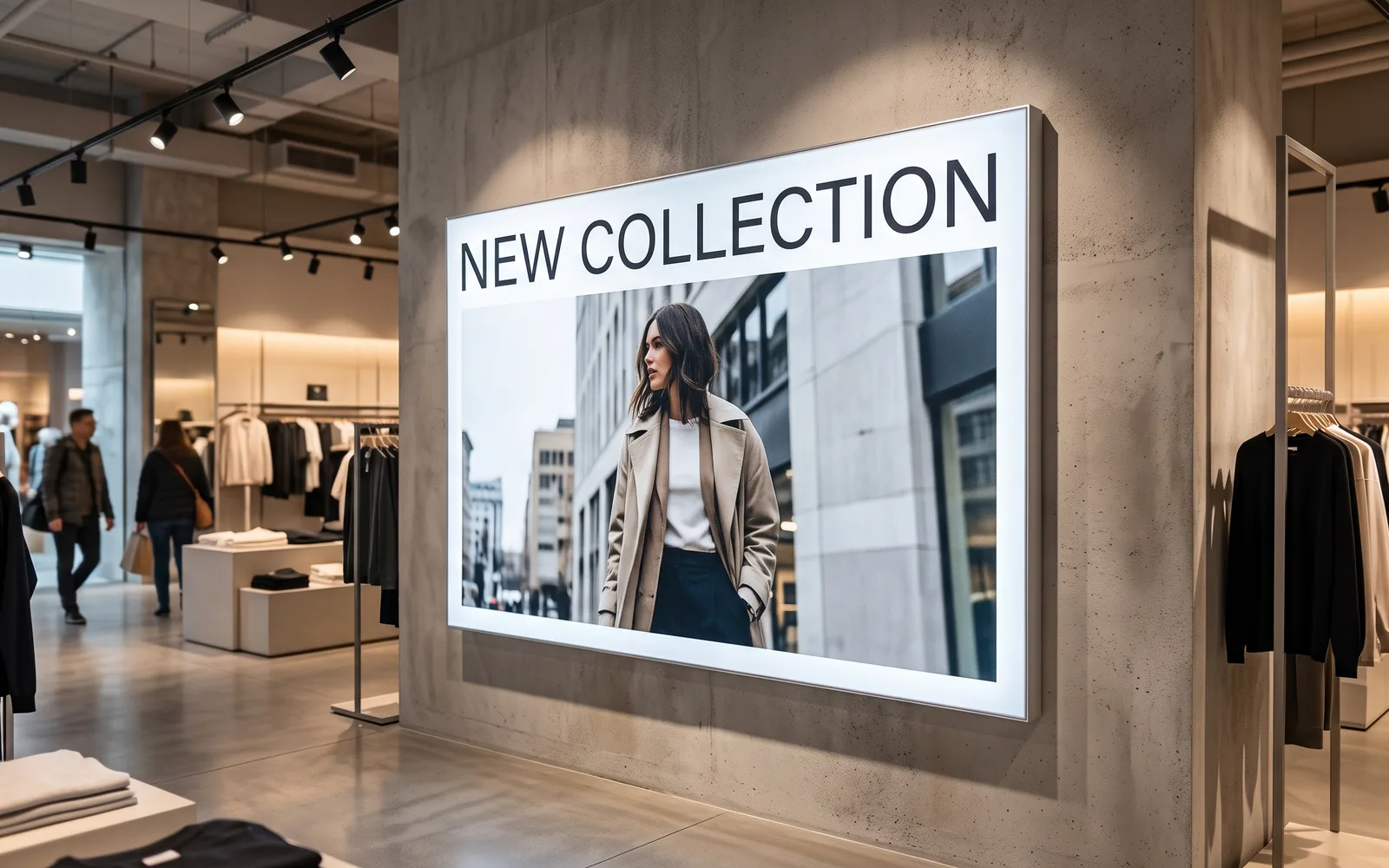

Knock-Down SEG Fabric Light Boxes (Flat-Pack Series)
Flat-pack aluminum frames with silicone-edge fabric graphics, shipped in a fraction of the volume.
Retail, mall and exhibition interiors
- Saves up to 75% in shipping volume
- Quick modular assembly with L-corner connectors
- Solves the high volumetric freight cost of shipping assembled light boxes overseas.
- Aluminum profiles are pre-cut at 45° and bundled with L-shaped corner connectors.
| Environment | Indoor retail, mall & exhibition |
|---|---|
| Materials | Extruded aluminum profiles, UV-printed backlit fabric with silicone edge |
| Illumination | Backlit LED, single- or double-sided |
| Power | DC 12V low-voltage LED |
| Production | 5–8 Working Days* |
* Estimated range. The schedule is confirmed in your written quotation.
Styles in this series
- Wall-Mounted Frameless SEG Light BoxSlim 4cm / 6cm / 8cm wall-mounted frame kits for retail walls and menu boards.
- Double-Sided Retail & Exhibition Light Box10cm / 12cm double-sided frame kits for hanging or free-standing use in malls and exhibitions.
- Replacement UV Silicone Edge GraphicsHigh-resolution UV-printed fabric with silicone edging; folds or rolls for courier shipping. A high-margin repeat-order product.
02 · Structural Anatomy
What is inside every light box
Four layers, each specified in your English shop drawing before production.
Layer 1 · Face
Silicone edge graphic (SEG)
UV-printed backlit fabric with a silicone strip sewn to the edge, pressed into the frame channel for a tensioned, frameless look.
Layer 2 · Return
Extruded aluminum profiles
4 / 6 / 8cm single-sided or 10 / 12cm double-sided profiles, pre-cut at 45° for mitred corners.
Layer 3 · Light source
Backlit LED strips
Low-voltage DC 12V LED strips or light bars spread light evenly behind the fabric.
Layer 4 · Backplate & mounting
Corner connectors and fixings
L-shaped corner connectors join the profiles; wall brackets, hanging cables or floor feet depending on the model.
03 · Customization Options
Finishes, light color and sizing
On-screen colors are approximate. Physical swatches are included in the Sign Maker Sample Kit.
Frame profiles
- 4cm wall-mounted
- 6cm wall-mounted
- 8cm wall-mounted
- 10cm double-sided
- 12cm double-sided
Graphics
- UV-printed backlit fabric
- Silicone edge strip
- Folded or rolled courier packing
LED color temperature
- 3000K Warm White
- 4000K Neutral White
- 6500K Cool White
04 · Tropical & Weather Adaptation
Built for Southeast Asian heat, rain and salt air
Tell us the installation exposure (coastal, direct sun, typhoon rain) so materials and drainage are specified for your site.
Corrosion-resistant frames
Aluminum profiles do not rust in humid tropical interiors.
Indoor product
Designed for indoor retail, mall and exhibition use; not intended for rain-exposed installations.
Color-stable graphics
UV-printed fabric graphics are easily replaced when campaigns change or colors fade.
05 · Plug & Play Installation Kit
Everything your installers need on site
Included in every shipment
- Assembly diagramStep-by-step English diagram for joining profiles, fitting LEDs and inserting the fabric graphic.
- L-shaped corner connectorsPre-matched connectors for each mitred corner, packed with the profiles.
- Mounting hardwareWall brackets, hanging cables or floor feet according to the model ordered.
Mounting methods
06 · Export-Grade Packaging
Four-step export packing from Xiamen / Quanzhou, China
Step 1
Pre-shipment lighting test
Every illuminated item is powered up and recorded on video for your confirmation before packing.
Step 2
Individual bubble wrap
Each letter or frame component is wrapped separately to protect faces and finishes.
Step 3
High-density EPE foam slots
Foam is cut to shape so pieces cannot shift or rub during transit.
Step 4
Fumigation-free plywood crate
Export plywood crates that do not require fumigation certificates.
Knock-down vs assembled shipping
- Assembled box
- An assembled light box ships as a rigid, mostly empty crate, so freight is charged on volume rather than weight.
- Knock-down kit
- Pre-cut profiles, corner connectors and LED strips are bundled tightly; the fabric graphic is folded or rolled.
Saves up to 75% in shipping volume Diagram not to scale.
07 · How to Order
From artwork to dispatch in four steps
- 1
Send Vector Artwork (AI/CDR/PDF)
Share your logo or layout with size, quantity and installation city. JPG/PNG is fine to start.
- 2
Free English Shop Drawing & Quote in 24h
Receive a dimensioned shop drawing and quotation for review and written approval.
- 3
CNC Fabrication & Video QC
Production starts after approval; lighting tests and finishes are shared on video.
- 4
Air/Sea Dispatch to Southeast Asia
Packed and shipped from Xiamen / Quanzhou, China by air express, air freight or sea.
Production starts only after you approve the shop drawing and order terms in writing. Start with step 1.
FAQ
Questions about Knock-Down SEG Fabric Light Boxes
Still deciding? Send your artwork and ask anything in the notes.
01How much shipping volume does the flat-pack design save?
Shipping knock-down profiles instead of an assembled frame saves up to 75% in shipping volume, because freight for assembled light boxes is charged on mostly empty crate space.
02How is a knock-down SEG light box assembled?
The aluminum profiles are pre-cut at 45° and join with L-corner connectors. Fit the LED strips, then press the silicone-edge fabric graphic into the frame channel. An English assembly diagram is included.
03Can I order replacement graphics later?
Yes. Replacement UV-printed silicone edge graphics are ordered separately and can be folded or rolled for courier shipping, so you can change campaigns without replacing the frame.
04What do you need from me to prepare a quote?
Send your logo or layout (AI, CDR or PDF vector files are best; JPG or PNG is fine to start), the approximate size, quantity and installation city. We aim to return an English shop drawing and quotation within 24h of receiving complete artwork.
05Are the signs and power supplies certified?
Light boxes run on low-voltage DC 12V. CE/RoHS/UL certified AC-DC LED drivers (e.g., MeanWell) are available upon request and are packed separately. Certification applies to those drivers, not to the complete custom sign; your local installer confirms site-specific electrical requirements.
06How long does production take?
Production is estimated at 5–8 Working Days after you approve the shop drawing and order terms. The confirmed schedule and shipping method are stated in your written quotation.
08 · Get a Quote
Upload your artwork for a free shop drawing & quote
Send your logo or layout with the size and destination. We reply with an English shop drawing and quotation, targeted within 24h of receiving complete artwork.
- Vector files (AI / CDR / PDF) preferred; JPG or PNG is fine to start
- No obligation; production starts only after written approval
- Prefer email? [email protected]
